01.11.22 19:28 cabba 50-99 Punkte	Re: Curt Bentzin "Primarflex" Demontage, Wartung und Reparatur. Could you walk me through step by step of setting the timing? Or is that too much to ask? Maybe it is simple, maybe difficult, but I am a bit afraid to try for myself after it took so long to get back to this point.
01.11.22 19:28 cabba 50-99 Punkte	Zitieren

Hinweise:

Urheberrechte 1: Keine Scans von Prospekten, Bedienungs-Anleitungen, Prominentenfotos, Kunstobjekten oder Buch/Zeitschriften-Artikeln, die über begründete Bildzitate hinaus gehen.

Urheberrechte 2: Nur selbst aufgenommene Fotos. Keine Fotos auf und in fremden Grundstücken / Gebäuden / Museen, Ausstellungen, Theatern, usw.

Urheberrechte 3: Textpassagen von fremden Quellen vermeiden, höchstens einige Zeilen deutlich als Zitat erkennbar mit genauer Quellenangabe.

Keine Fotos, auf denen Personen erkennbar oder zuord-bar sind, ohne deren schriftliche Genehmigung (DSGVO). Ebenso keine erkennbaren KFZ-Kennzeichen oder Fragmenten davon! !

Fotos: Für beste Darstellung die Fotos (Thumbnails) unter den Textbeiträgen anklicken.

Der Zähler der Vorschaubilder zeigt NICHT die echte Zugriffszahl, die Bild-Anklicke direkt im Text werden nicht gezählt!

01.11.22 19:36

cabba

50-99 Punkte

01.11.22 19:36
cabba

50-99 Punkte

Re: Curt Bentzin "Primarflex" Demontage, Wartung und Reparatur.

Currently I have this, if I understood correctly:

C2 is tensioned manually. C1 is not tensioned (C1 is in a released position, just below the film gate)

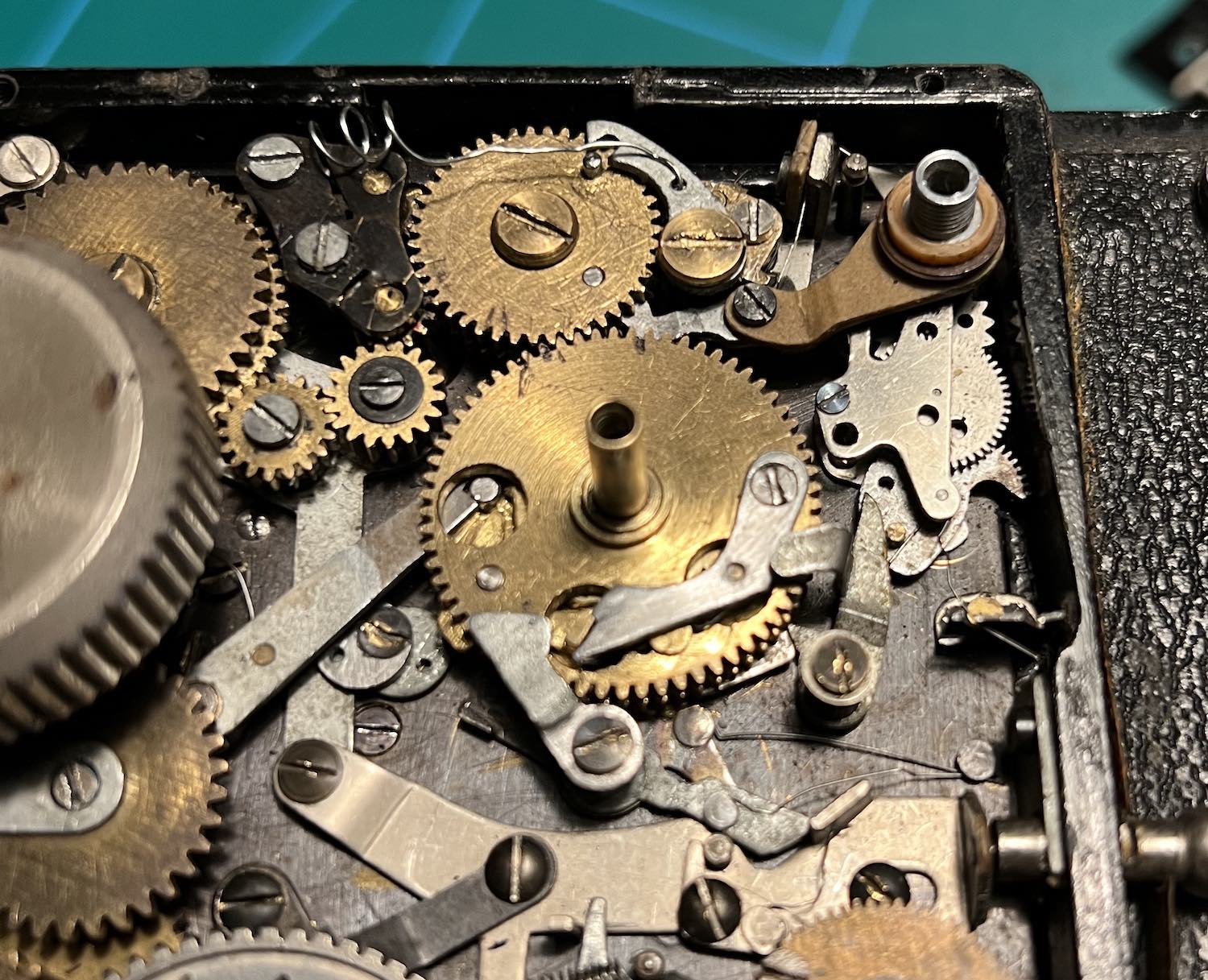

The timing wheel looks like this.

Datei-Anhänge


Zitieren

01.11.22 19:43

cabba

50-99 Punkte

01.11.22 19:43
cabba

50-99 Punkte

Re: Curt Bentzin "Primarflex" Demontage, Wartung und Reparatur.

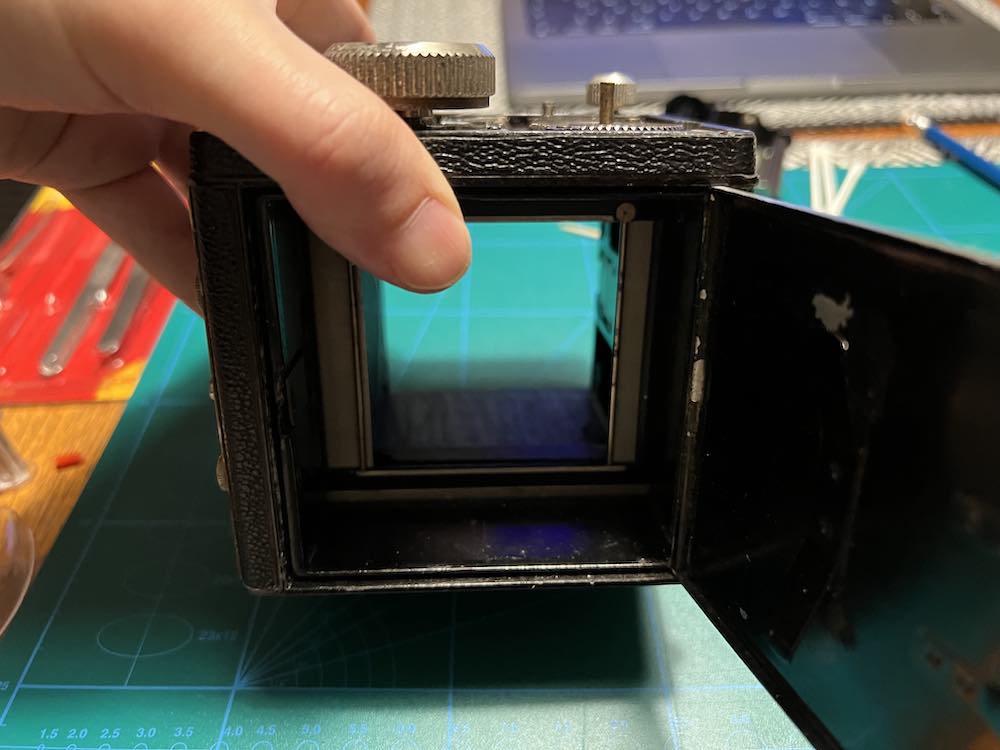

Now at this point I could drop in the 1st curtain timing wheel and have the scratches match. But the shutter is still open

There must be again something very simple I am not understanding. Or is this correct now?

edit:

Or is this now the T setting on the shutter speed setting knob? With C1 released and C2 tensioned?

Edited 01.11.22 19:55

Datei-Anhänge


Mime-Type: image/jpeg, 363 kB

Zitieren

01.11.22 19:57 mazdaro 500 und mehr Punkte

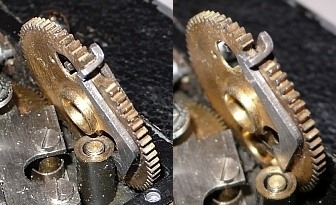

01.11.22 19:57 mazdaro 500 und mehr Punkte	Re: Curt Bentzin "Primarflex" Demontage, Wartung und Reparatur. Yes, C1 should be tensioned too. And both cams should be exactly in the same position as shown on the drawing.
01.11.22 19:57 mazdaro 500 und mehr Punkte	Zitieren

01.11.22 20:07 cabba 50-99 Punkte

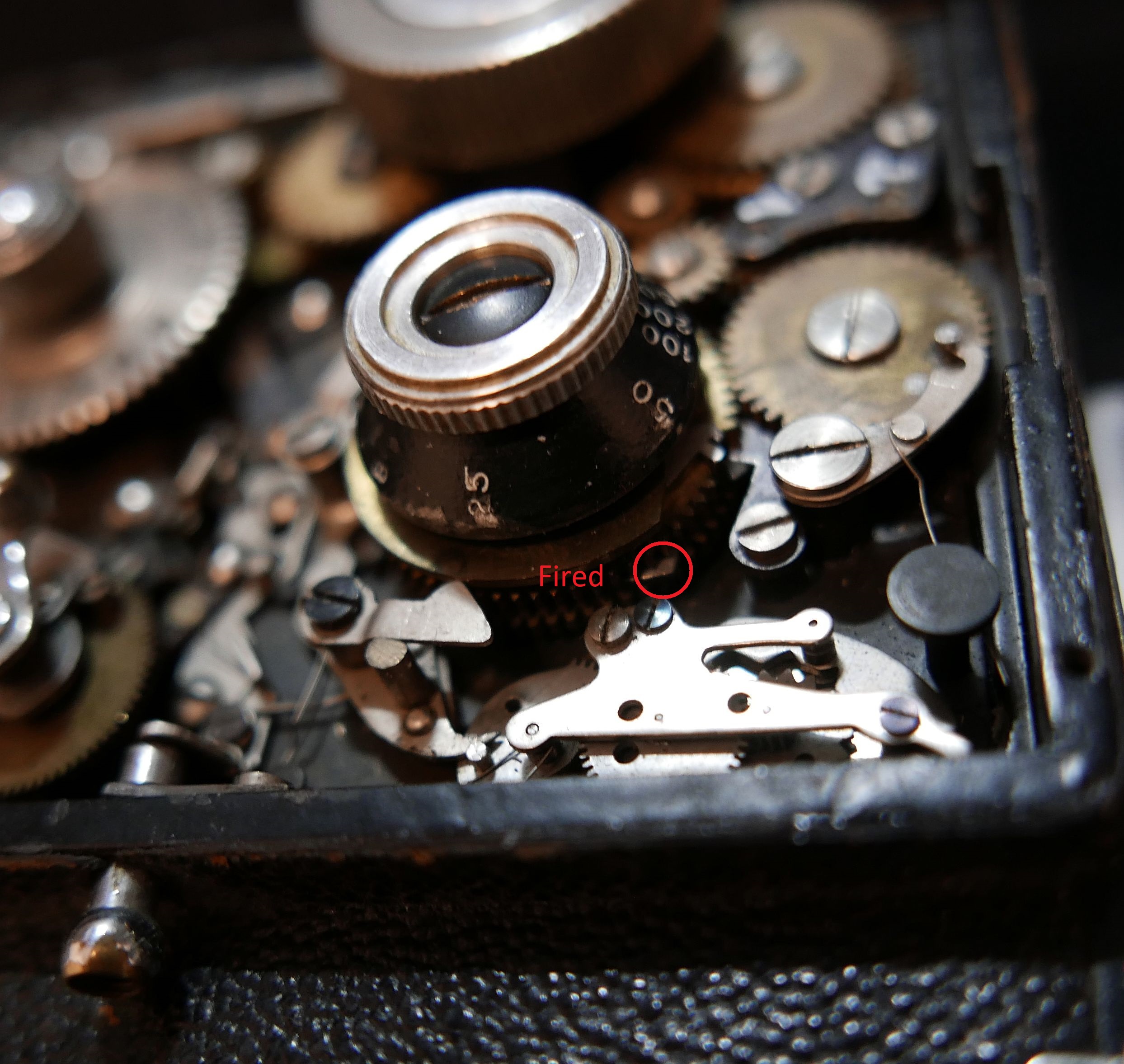

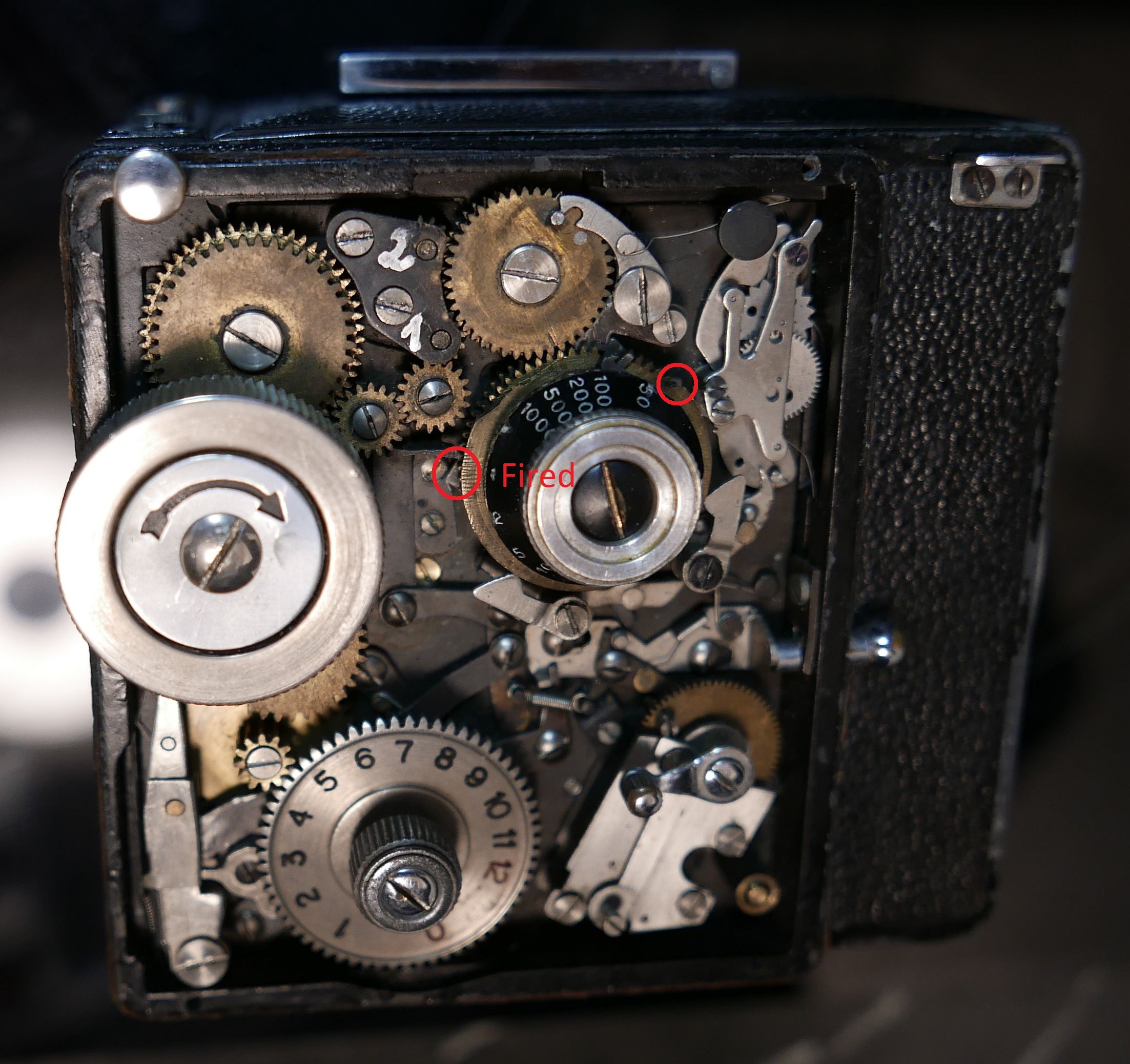

01.11.22 20:07 cabba 50-99 Punkte	Re: Curt Bentzin "Primarflex" Demontage, Wartung und Reparatur. Tension both curtains, and put the cams like on the left picture (Aufgezogen)? So does this position correspond to some specific setting on the shutter speed wheel?
01.11.22 20:07 cabba 50-99 Punkte	Zitieren

01.11.22 20:17

cabba

50-99 Punkte

01.11.22 20:17
cabba

50-99 Punkte

Re: Curt Bentzin "Primarflex" Demontage, Wartung und Reparatur.

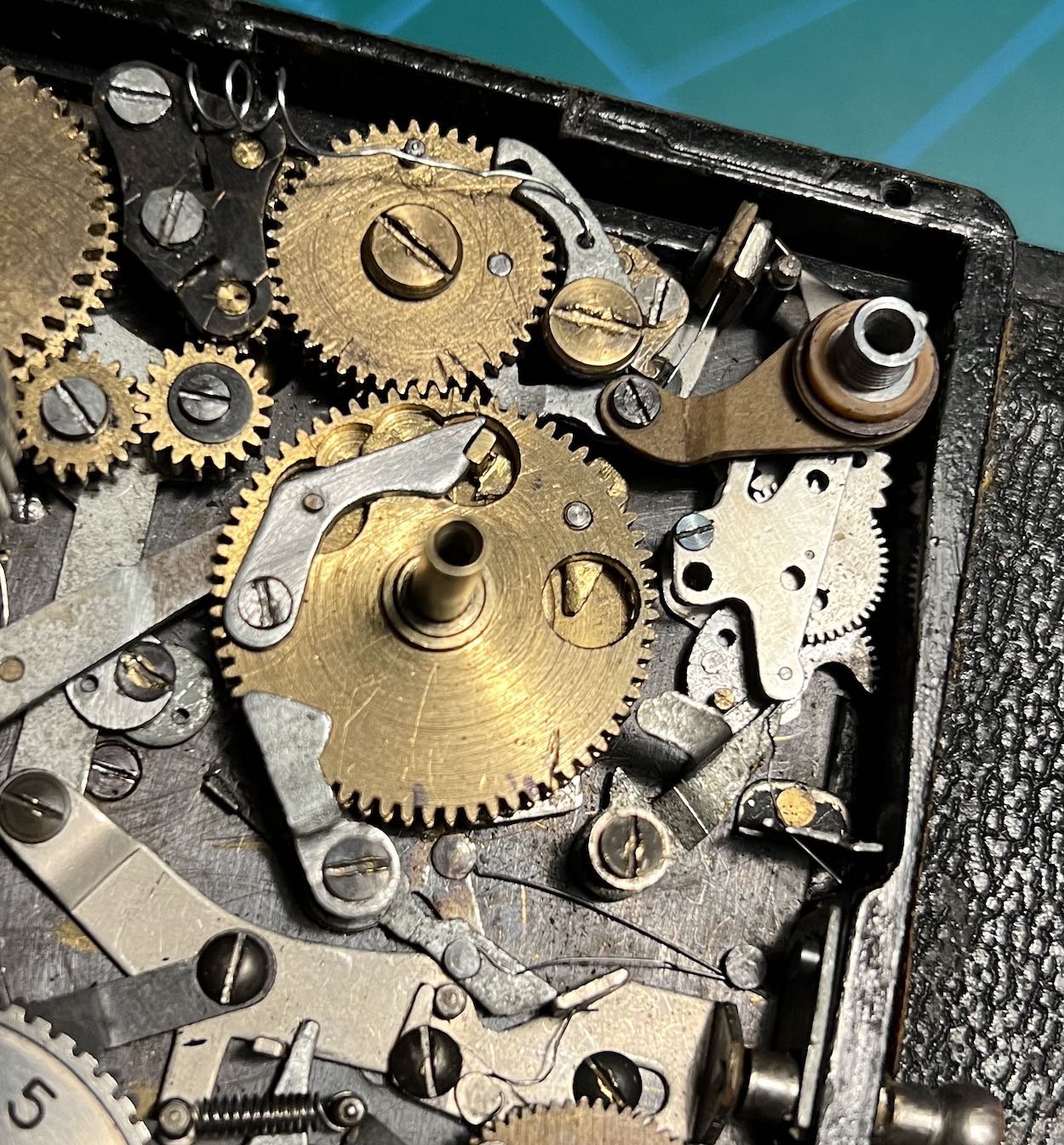

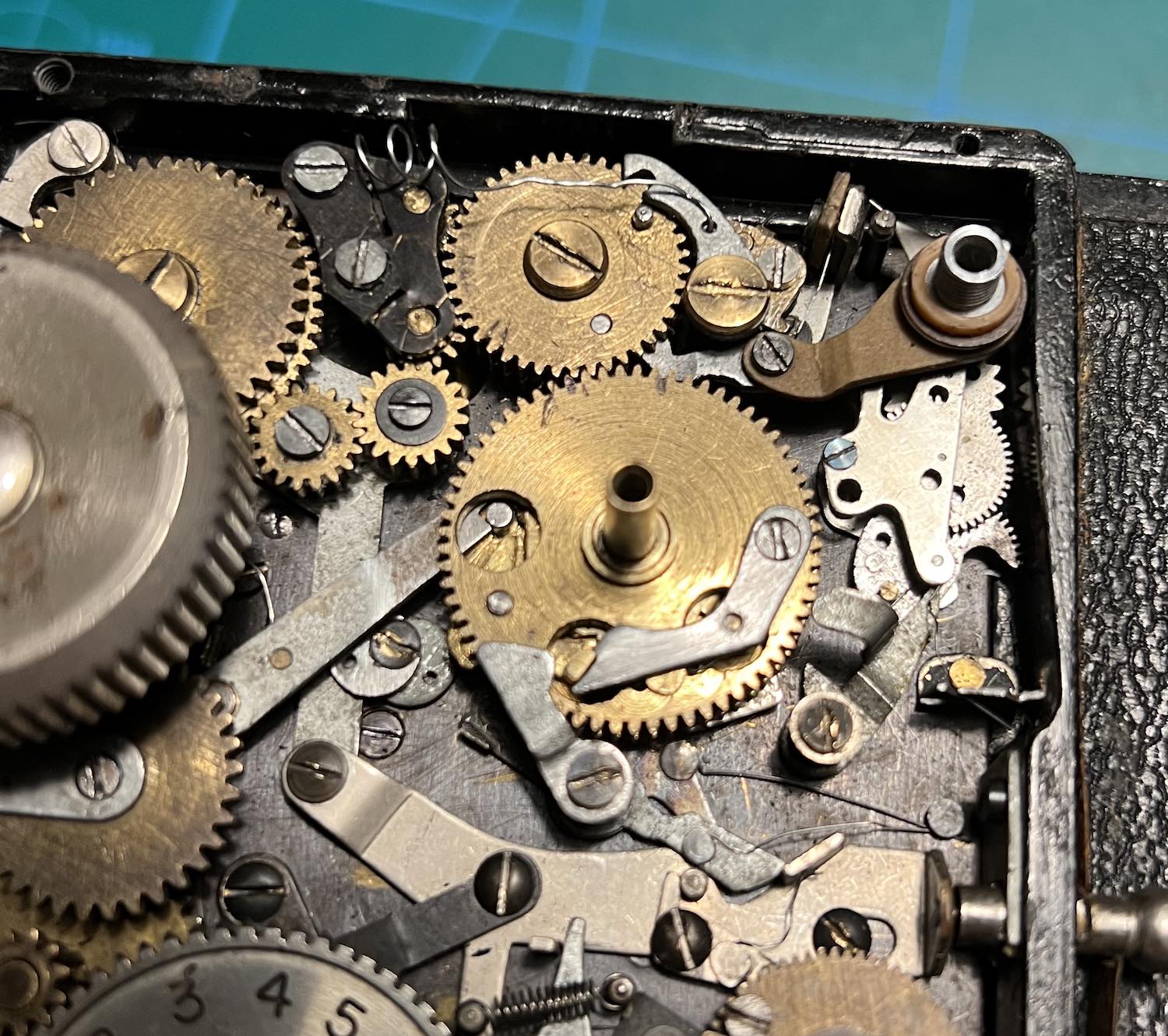

I set the upper wheel so the scratches lined up, then tensioned C1 as well. Now the cams are like in your position, but the tensioning wheel doesn't completely line up with the little arm that is supposed to lock on the mirror. Should I try again and get the cams & that little arm lined up at the same time?

Edited 01.11.22 20:17

Datei-Anhänge


Mime-Type: image/jpeg, 315 kB

Zitieren

01.11.22 20:33

cabba

50-99 Punkte

01.11.22 20:33
cabba

50-99 Punkte

Re: Curt Bentzin "Primarflex" Demontage, Wartung und Reparatur.

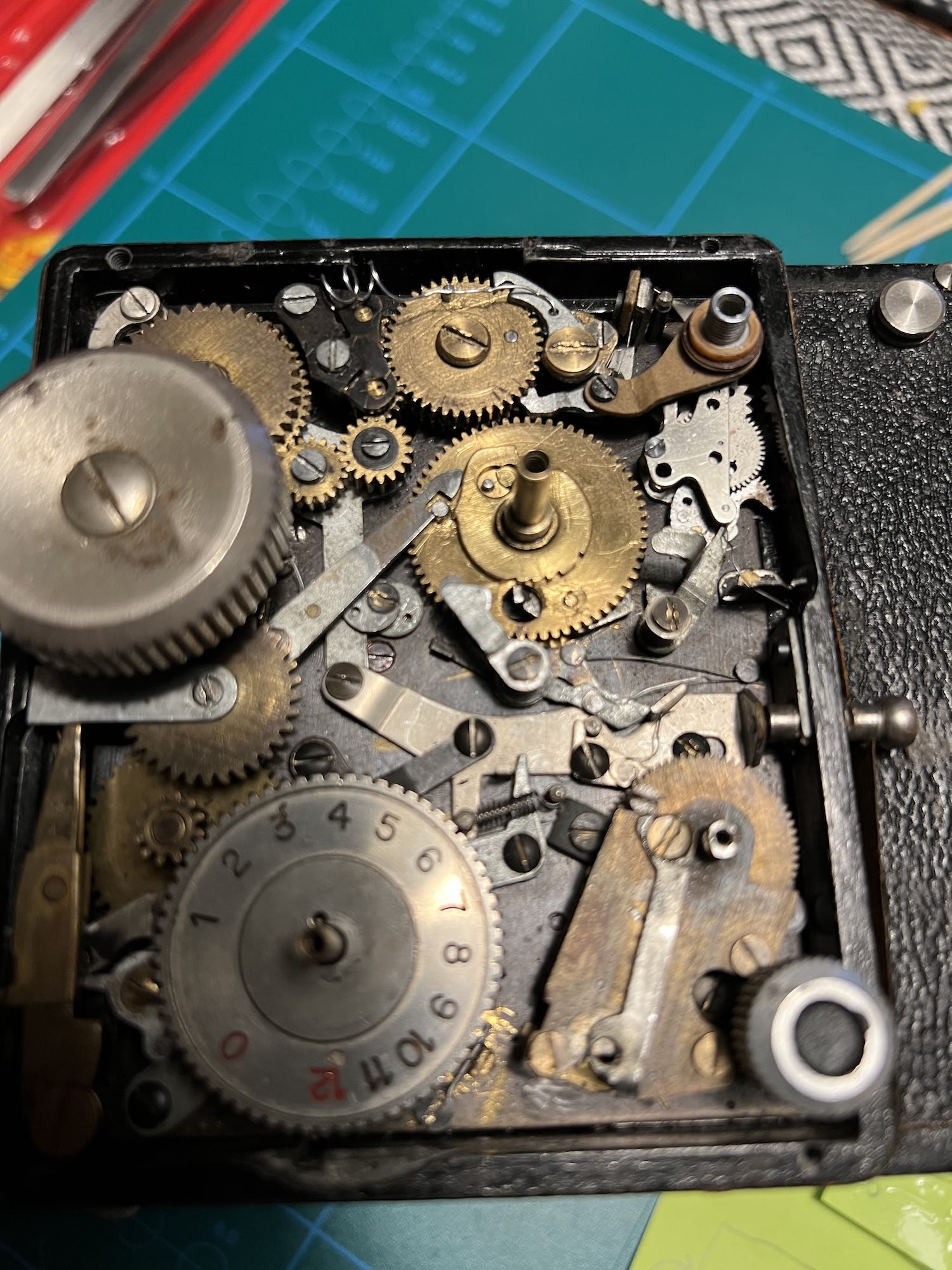

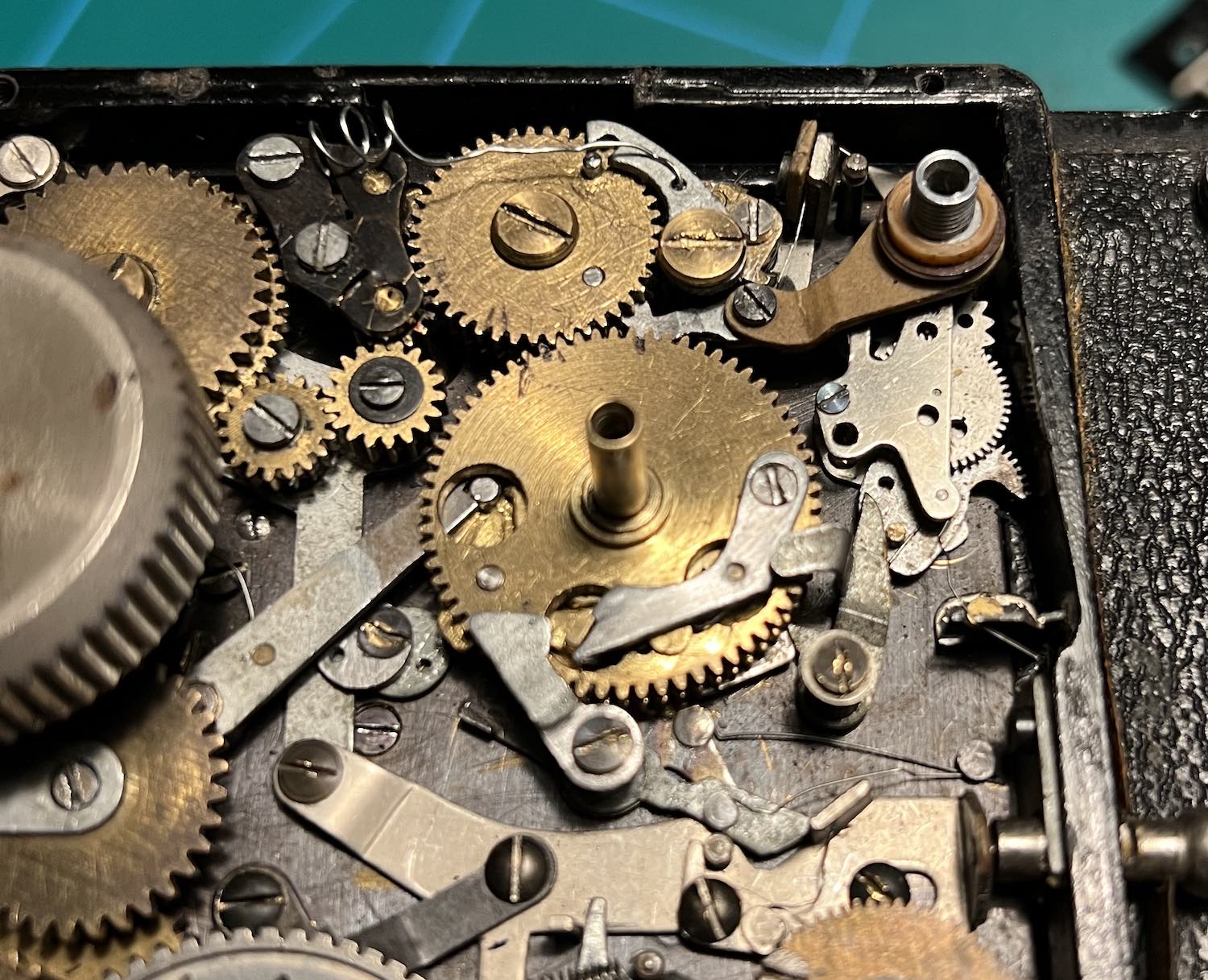

I fixed it that the tension wheel is now in position, and all the cams are like in your drawing. What shutter speed should I set the shutter speed selector wheel on for this?

Datei-Anhänge


Mime-Type: image/jpeg, 307 kB

Zitieren

01.11.22 20:50 mazdaro 500 und mehr Punkte

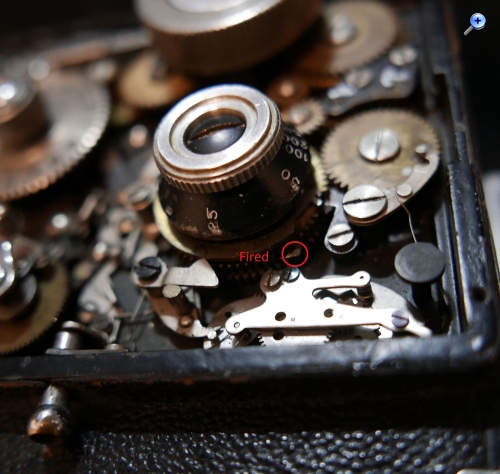

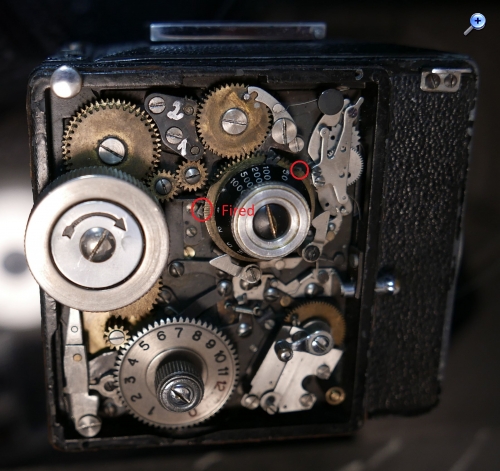

01.11.22 20:50 mazdaro 500 und mehr Punkte	Re: Curt Bentzin "Primarflex" Demontage, Wartung und Reparatur. The proper position of the cams to one another makes sure that the position of the curtains is correct (Proper overlaping). That's why we should always mark the position of two corresponding gears, before removing one gear. The speed wheel is another story. See also my disassembly of the Asahiflex here. The operating principle is similiar. I'll try to make some pics...
01.11.22 20:50 mazdaro 500 und mehr Punkte	Zitieren

01.11.22 21:07

cabba

50-99 Punkte

01.11.22 21:07
cabba

50-99 Punkte

Re: Curt Bentzin "Primarflex" Demontage, Wartung und Reparatur.

I had a little test, currently the curtains overlap a bit. 1000, 500, 200 and 100 times at least don't open at all. 25 at least works. Also, my homemade mirror arm spring shot out into orbit when I tested the camera The thing that started this whole adventure. I have to make a new one

Edit: joy was shortlived. It seems to work for a while, then it goes unsynced.
